HowTo: Monitoring if a specific user is logged on with Zabbix

Sometimes you face the problem, that a software vendor depends on logged on user sessions, instead of windows services. We had the case, that a partner constantly complained, that we logged of his service user. To have a history about the logged on state, I added a Zabbix item through the possibility to add custom UserParameter. The CMD line utility qwinsta is able to check if a specific user is logged on.


First of all, an example of the output qwinsta can give you:

True:

marco.hofmann@XENWORKSTATION C:\Users\Marco.Hofmann
> qwinsta marco.hofmann
 SITZUNGSNAME      BENUTZERNAME             ID  STATUS  TYP         GERÄT
>console           marco.hofmann             1  Aktiv

False:

marco.hofmann@XENWORKSTATION C:\Users\Marco.Hofmann
> qwinsta administrator
Für administrator ist keine Sitzung vorhanden

This helped me to write the Zabbix UserParameter entry:

UserParameter=xenadmin.qwinsta[*],c:\Windows\System32\qwinsta.exe "$1"

After this I was able to get the value I need via zabbix_get:

root@zabprox:~# zabbix_get -s server.domain.local -k xenadmin.qwinsta[testuser]
 SITZUNGSNAME      BENUTZERNAME             ID  STATUS  TYP         GERÄT
 rdp-tcp#5         testuser                  1  Aktiv

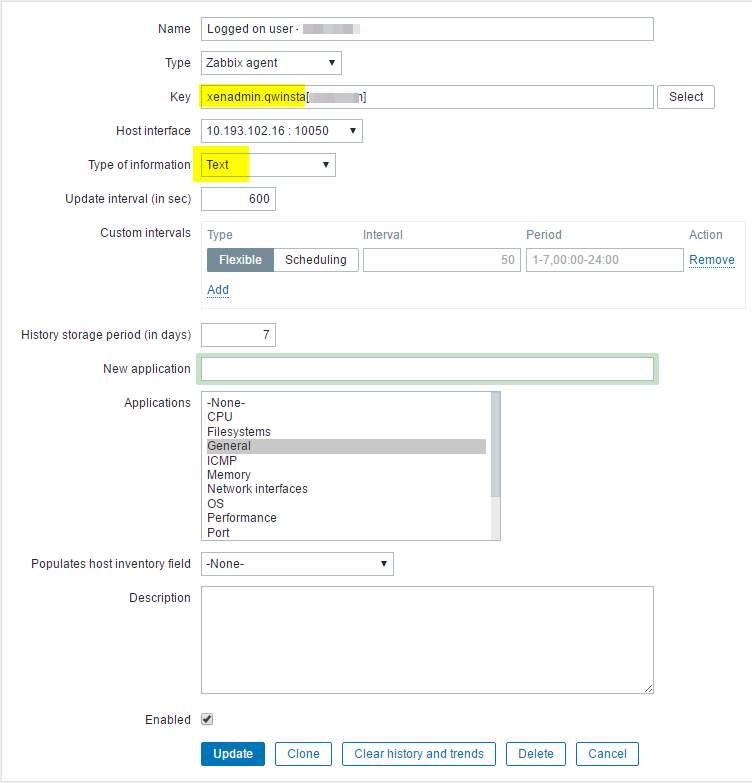

Now I was able to create the Zabbix Item:

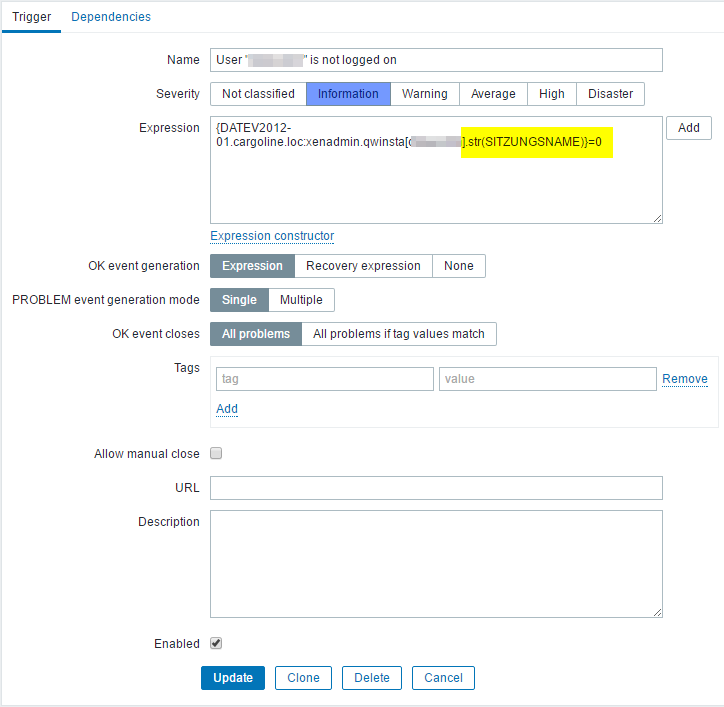

And this led me to the last step, the trigger expression:

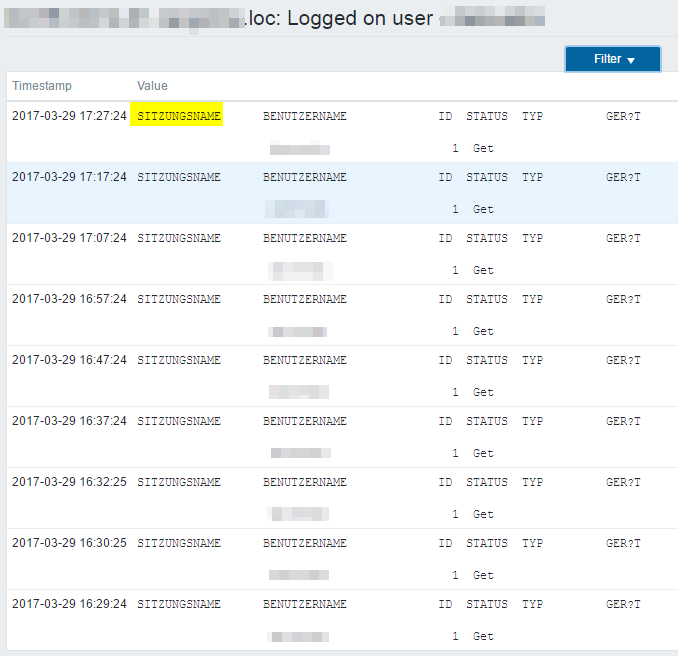

Zabbix Latest Data now shows every 10 minutes the logged on state, the Trigger informs us, if the session would be logged of.
